Reflow Oven SMT
NeoDen IN12 Reflow oven SMT
Specification
| Product name | NeoDen IN12 reflow oven SMT | Temperature Accuracy | 1℃ |
| Heating Zone Quantity | Upper6 / Down6 | PCB Temperature Deviation | ±2℃ |

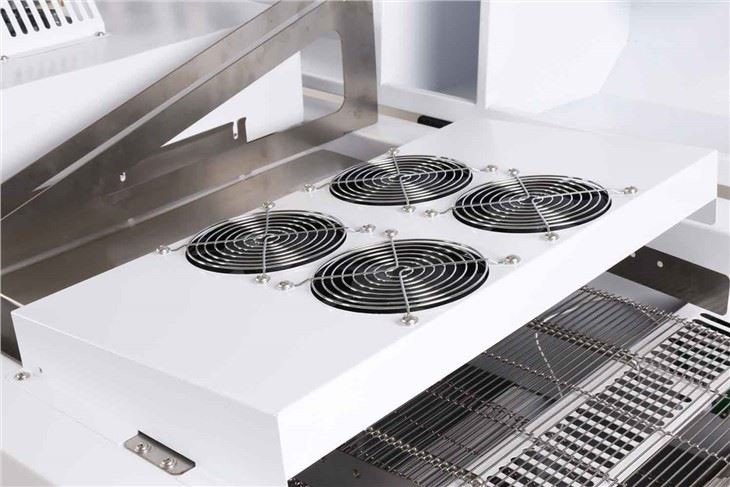

| Cooling Fan | Upper4 | Max soldering height | 35mm(includes PCB thickness) |
| Conveyor Speed | 50～600 mm/min | Max Soldering Width (PCB Width) | 350mm |
| Temperature Range | Room temperature～300℃ | Length Process Chamber | 1354mm |
| Electricity Supply | AC 220v/single phase | Heat-up Time | 30 min |
| Machine Size | L2300mm×W650mm×H1280mm | Net Weight | 300Kgs |
Features
 |
Energy conservation and environment protection
Built-in welding smoke filtering system, effective filtration of harmful gases, eco-friendly. Energy saving, low power consumption, low power supply requirements, the ordinary civil electricity can meet the use. The internal thermostat is made of stainless steel, which is environment friendly and has no peculiar smell. |
|
Intelligent control system

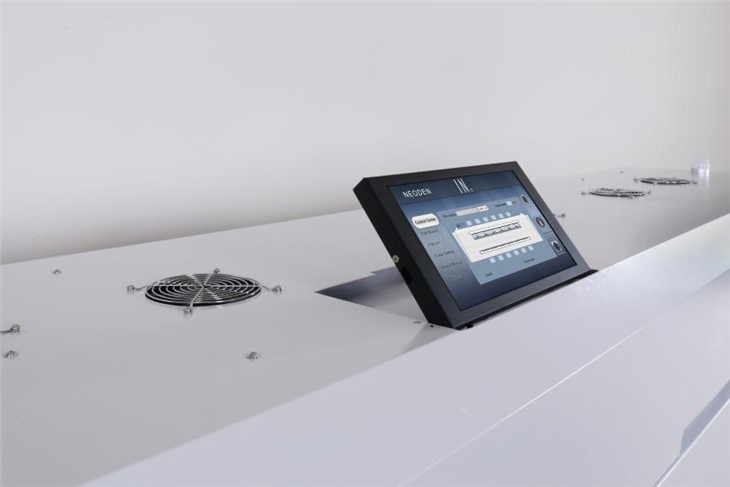

Intelligent, the custom developed intelligent control system, easy to use and powerful. Professional and unique 4-way board surface temperature monitoring system. PCB soldering temperature curve can be displayed based on real-time measurement. |
 |
 |
Elegant appearance
More in line with the high-end use environment. Lightweight, miniaturization, professional industrial design, flexible application site, more user-friendly.
Beautiful and elegant indicator design with red, yellow and green alarm function. |
|
Safer to use
The upper temperature cover is automatically limited once opened, effectively ensuring the personal safety for the operators. |
 |
Our Service
1. Provide video tutorial after purchasing the product.
2. 24-hour online support.
3. Professional after-sales technical team.
4. Free broken parts(Within 1 Year warranty).
If you need, please feel free to contact us for more information.
Provide one-stop SMT assembly production line
FAQ
Q1. Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q2. How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
Q3. How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
About us
exhibition
certification
factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
If you need, please feel free to contact us for more information.
