Full Automatic Solder Paste Printer
Description
1. Accurate optical positioning system.
2. Intelligent squeegee system.
3. High efficiency and high adaptability stencil cleaning system.
4. HTGD Special PCB thickness adaptive system.
5. Printing axis servo drive.
6. 2D solder paste printing quality inspection and SPC analysis.
Specification
| Product name | Full Automatic Solder Paste Printer | Maximum board weight | 3Kg |
| Maximum board size（X x Y） | 450mm x 350mm | Board margin gap | Configuration to 3mm |
| Minimum board size（X x Y） | 50mm x 50mm | Maximum bottom gap | 20mm |
| PCB thickness | 0.4mm~6mm | Transfer height from the ground | 900±40mm |
| Warpage | ≤1% Diagonal | Transfer speed | 1500mm/s (Max) |
| Transfer orbit direction | L-R, R-L, L-L, R-R | Machine weight | Appro.1000Kg |
Details
Accurate optical positioning system
Good identification
Light intensity is adjustable
Four way light source is adjustable

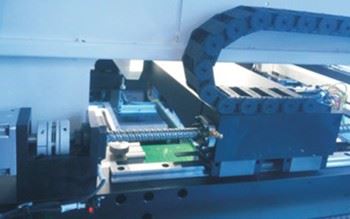

Printing axis servo drive
Improve accuracy grade
Provide good printing control platform
operational stability, extend the service life
Stencil cleaning system
Soft wear-resistant rubber wiping plate
Cleaning methods of dry, wet and vacuum
Thorough cleaning, convenient disassembly
Intelligent squeegee system
Intelligent programmable setting
Built-in precise pressure control system
Two independent direct motors driven squeegee
PCB thickness adaptive system
Intelligent, fast, simple and reliable in structure
Solder paste printing quality inspection
2D function can quickly detect the printing defects
The detection points can be increased arbitrarily
Packaging & Shipping
Packaging
One piece in one wooden case
Suitable quantity to an export wooden case
Other packing accessories in regular
Customer required packing is available
Shipping
by air, sea, or express
Delivery time
about 15~30 days after order details and production confirmed.
Q1: Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q2: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping , payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
