Automatic PCB Assembly Machine
■ Placement Rate up to 20,000CPH
■ Placement Accuracy 0.01 mm
■ Feeder Capacity of 80 pcs 8mm tape feeders
NeoDen N10P is a high-performance High Speed Pick and Place Machine, designed to boost your SMT production speed and yield with its powerful configuration and high-level automation.
Intelligent Vision: Features a comprehensive Camera Configuration of Dual Mark Camera + Front Flying Camera + IC Camera. It supports a wide Component Range, from 0201 up to 40mm×40mm (Max Height 16mm).
Product Details ofAutomatic PCB Assembly Machine
NeoDen n10P Automatic PCB Assembly Machine
Feature of Automatic PCB Assembly Machine
1. Automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
2. IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.
3. Automatic calibration of nozzle height.
4. Increase the convenience of recycling material by adding a throw box.

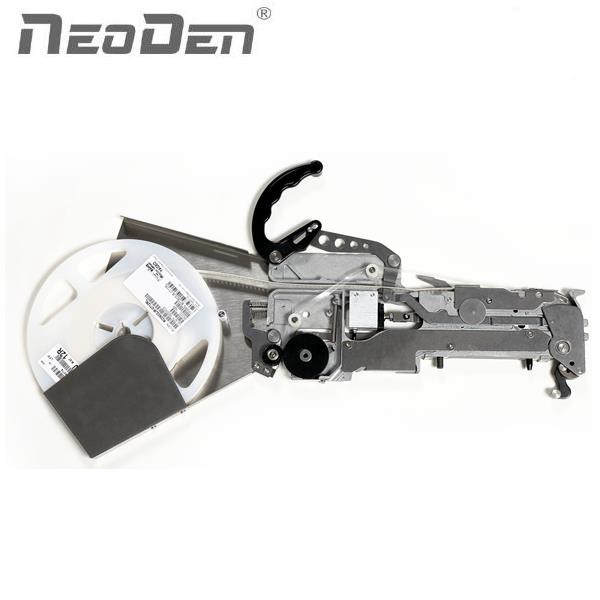

5. 80 tape feeders to increase the number of simultaneous feeding capacity.
Technical Parameters of Automatic PCB Assembly Machine
| Number of Head | 8 | Speed | 20,000CPH (Max) |
| Position Accuracy | ±0.01mm | Component Range | Flying Camera: 0201-22mmx22mm |
| PCB Size | Min. 50mmx50mm | IC Camera: 0201-40mmx40mm | |
| Max.: 450mm*1500mm (without IC tray) | Max Height: 16mm | ||
| 395mm*1500mm (with IC tray) | Power | 600W, Single phase, 220V/110V, 50Hz/60Hz | |
| PCB Thickness | 0.2mm-3.5mm | Feeder Capacity | Tape&Reel: 80pcs (33 front+47 rear) |
| Air Source | 0.6Mpa-0.8Mpa | IC Tray: 1 | |
| Flow rate | 37L/min | Weight | 1,000kgs |
| Dimension | 1289mmx1254mmx1386mm | Packing Size | 1320mmx1290mmx1456mm |
Details
Accessories
|
Tool Box(14inch)*1 Pan head cross screws set(5*10)*5 |
Cup head screws(5*14)*5 M5 flat spacers*5 M5 elastic spacers*5 Cup head screws(4*16)*5 M4 flat spacers*5 M4 elastic spacers*5 Ties*4 PCB Positioning block assembly*1 PCB Positioning Block*9 Round magnets(D10*2)*9 Feeder solenoid valve(333-C4ZP)*1 Nozzle:10pcs(CN040-1PC; CN065-2PCS; CN100-2PCS; CN140-2PCS; CN220-1PC; CN400-1PC; CN750-1PC) Demo PCB*1 Mouse and keyboard tray *1 Monitor Stand*1 Power cord: 1 |
