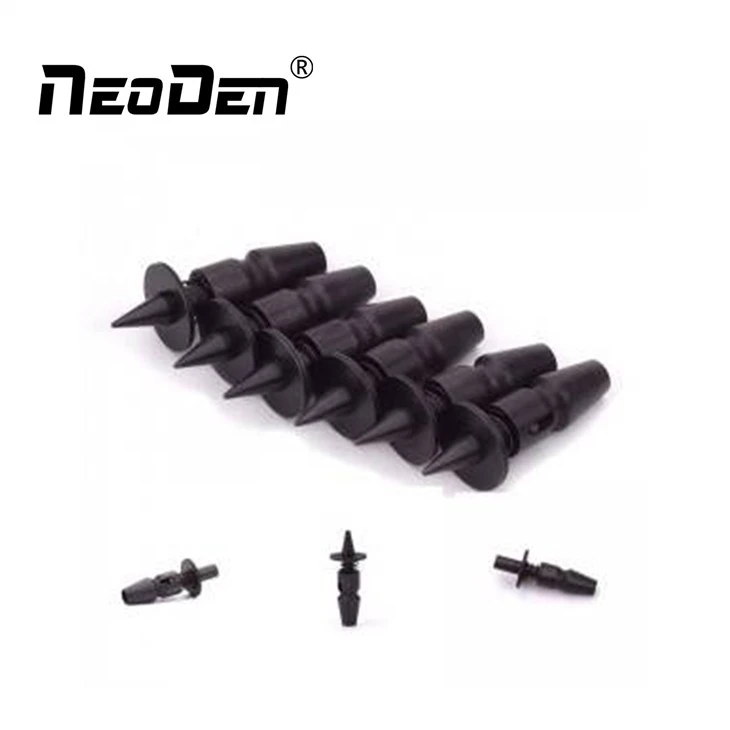

Pick and Place Nozzle

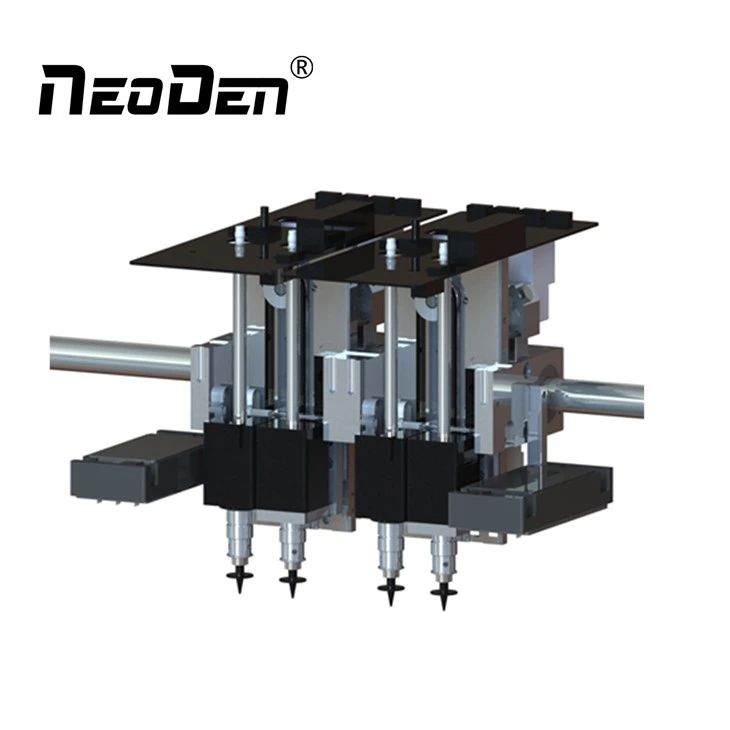

Pick and Place Nozzle
The size of the nozzle
Please choose nozzles according to the shape and size of components.
| Model | Recommendation ( Imperial system) |
| CN030 | 0201 |
| CN040 | 0402 (optimal) |
| CN065 | 0402,0603 etc. |
| CN100 | 0805,diode, 1206, 1210 etc. |
| CN140 | 1206,1210, 1812, 2010, SOT23,5050, etc. |
| CN220 | SOP series ICs,SOT89, SOT223, SOT252, etc. |
| CN400 | ICs from 5 to 12mm |
| CN750 | ICs bigger than 12mm |
| YX01 | 3528serices Soft bead |
| YX02 | High power lamp beads |
| YX03 | Chips and BGA from 11mm to 17mm BGA |
| YX04 | Chips and BGA bigger than 17mm |
| YX05 | 4148 circular diode |
| YX06 | 3535 ball shape LED (Spherical height 1.4mm, overall height 1.9mm) |
In order to ensure the placement accuracy, please select nozzles according to the shape and size of components.

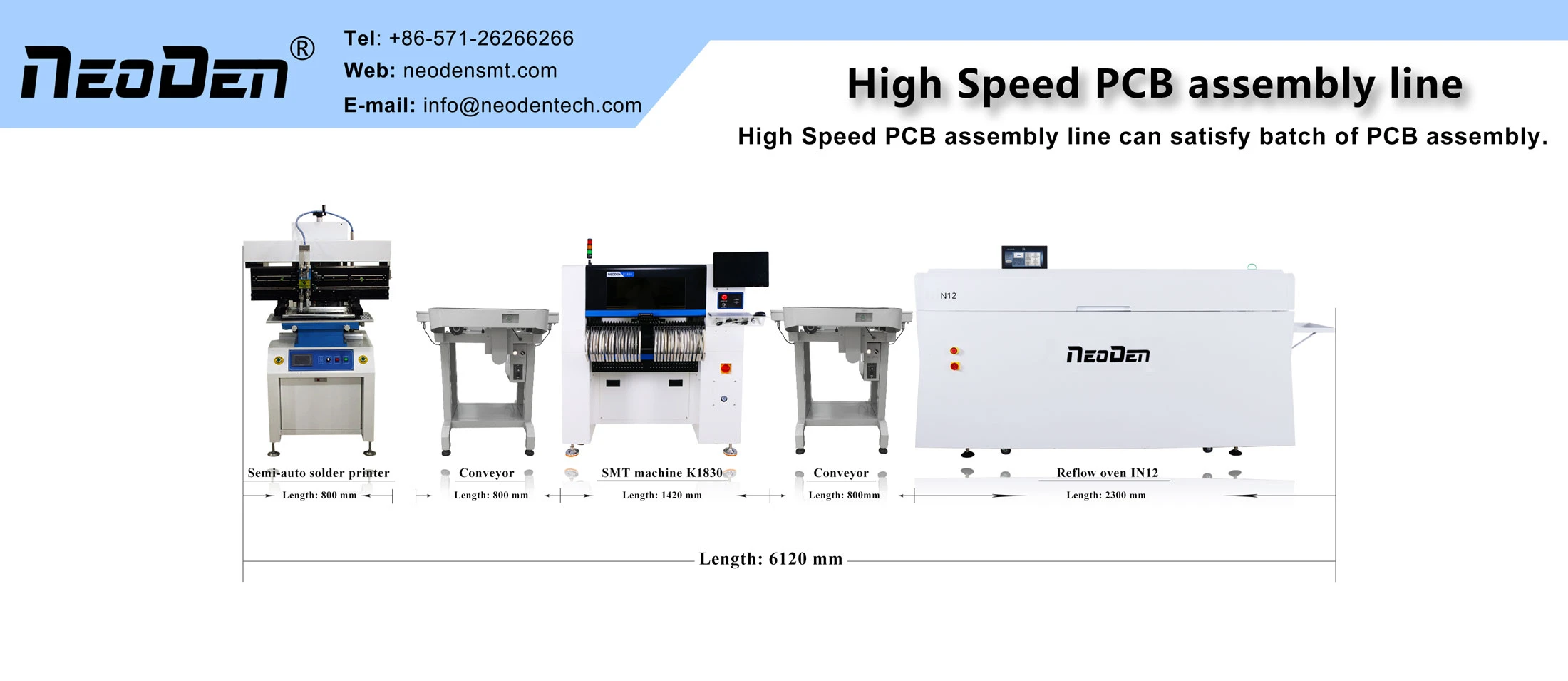

Provide one-stop SMT assembly production line
FAQ
Q1: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q2: What products you sell?
A: Our company deal in the following products:
SMT equipment
SMT accessories: Feeders, Feeder parts
SMT nozzles, nozzle cleaning machine, nozzle filter
Q3: Can we customize the machine?
A: Of course.
All of our machines can be customized.
About Us

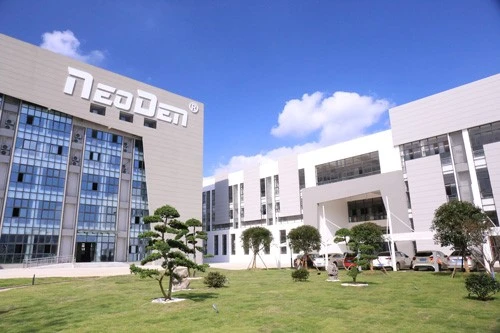

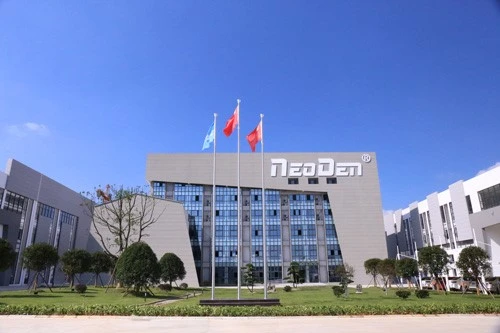

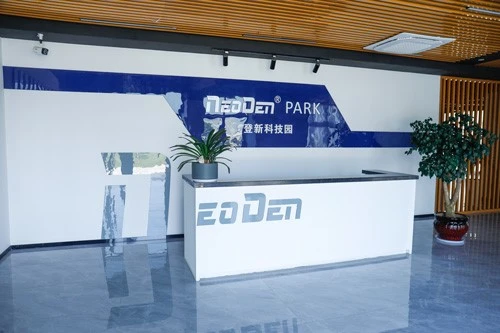

Factory
certification

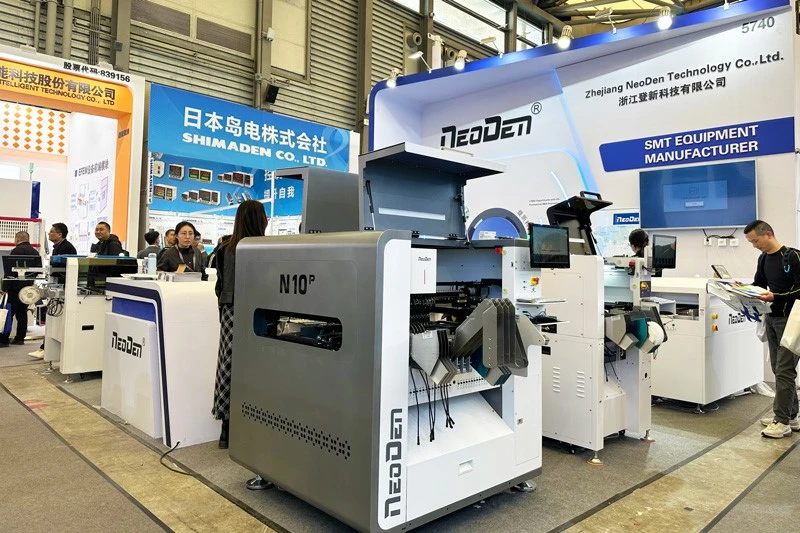

exhibition
If you need, please feel free to contact us for more information.
