SMT Placement Equipment

SMT Placement Equipment

NeoDen4 is a benchtop pick and place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN. Especially, with its auto rails, it is applicable for 0.8m/1.2m/1.5m LED strip.

Send InquiryChat Now

Product Details

SMT placement equipment

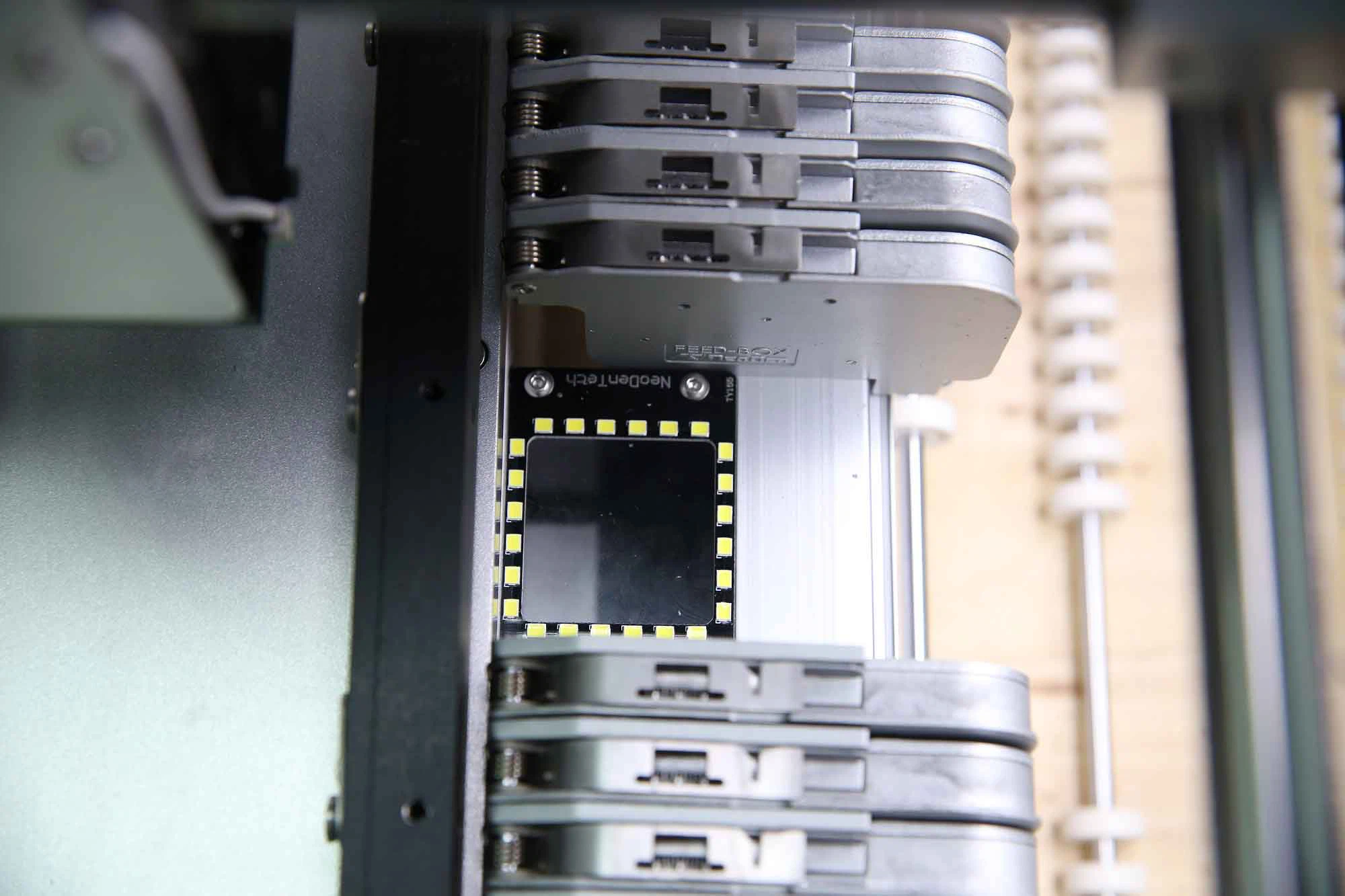

SMT placement equipment 6.jpg

Introduction

NeoDen4--- Desktop Pick and Place Machine with Vision System(with internal rails)

NeoDen4 is a pick and place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN. Especially, with its Internal rails, it is applicable for 0.8m/1.2m/1.5m LED strip.


Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..


Specification


Model

NeoDen4- SMT placement equipment

Machine style

Single gantry with 4 heads

Placement Rate

Vision on

5,000CPH

Vision off

10,000CPH(Optimum)

Feeder Capacity

Tape feeder:48 with 8mm

Vibration feeder:5

Tray feeder:5

Component Range

Smallest Size

0201

Largest Size

32x32mm (Lead Pitch 0.5mm)

Rotation

±180°

Placement Accuracy

±0.02mm

X-Y Repeatability

±0.02mm

Board Dimension(mm)

Maximum

310 x 1500mm

140 x1500mm(With    1 waffle Tray)

Main Control

GUI

Electricity Supply

110V/220V

Power

180W

External Dimensions(mm)

Packing size

940(L)x740(W)x600(H)

Weight

Gross weight

80kgs


Accessories

1) Pick and Place Machine NeoDen4: 1

2) Nozzle: Totally 6       (CN065=2, CN140=2,XN40=1,XN22=1)

3) 8G Flash Drive: 1

4) Power Cord(5M): 1

5) Video training course: 1

6) Double Sided Adhesive Tape: 2

7)Allen wrench Set:5

8)Tool Box:1

9)Reel holder stand:1

10)Vibration Feeder:1

11)Rail Extension Parts:4

12)User Manual:1

SMT placement equipment 1.jpg


NeoDen4 with CE certification approved from TUV Nord:

SMT placement equipment 2.jpg



FAQ

1).Q: How many nozzles do you supply? Do you sell nozzles and spares?

    A: We supply 6 nozzles for one machine. Yes, we do sell nozzles and spares. If you need any spars, just let us know.

2).Q: What's the way of shipping?

    A: We support shipping by door to door express, air transport and sea transport.

3).Q: How is the training?

    A: We support online training or customers can come to our company to have a face to face training.

4).Q: Is it hard to use these machines?

    A: No, our machine is very easy to operate. For our previous clients, at most 2 days is enough to learn to operate themachines.

5).Q: Does your machines have quality certificate?

    A: Our machine have passed CE certificate and we have our own patents.

6).Q: How about the warranty?

    AThe guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply. NeoDen will provide online Q/A and troubleshooting support and technical advice service.
