Small Pick And Place Machine Circuit Board Maker Machine

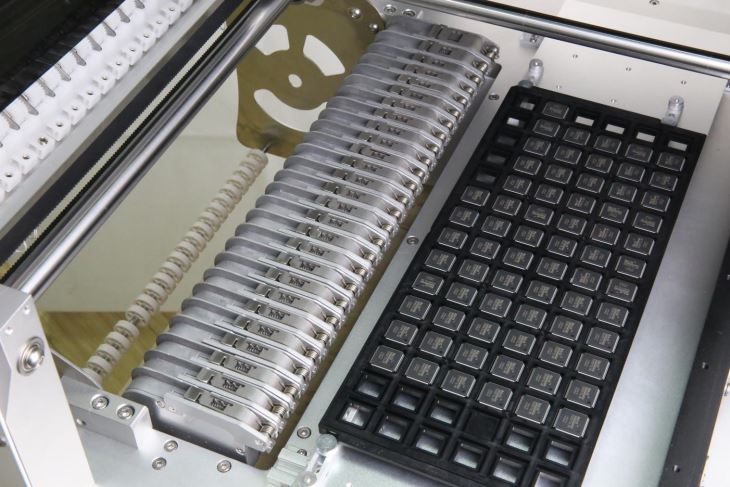

Our latest model NeoDen4 features 4 heads, auto rails, vision system, electronic feeders, conveyor supported, etc. NeoDen4 is a flexible pick and place machine for all types of production. With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time. It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Send Inquiry

Product Details

Automatic SMT Pick Place Robot NeoDen4


Item Description

NeoDen4 is a flexible pick and place machine for all types of production.

With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.

It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.



Specification


Model

NeoDen4

Machine style

Single gantry with 4 heads

Alignment

Stage Vision

Placement Rate

Vision on

5,000CPH

Vision off

10,000CPH(Optimum)

Feeder Capacity

Tape feeder:48(all 8mm)

Vibration feeder:5

Tray feeder:5

Component Range

Smallest Size

0201

Largest Size

32x32mm (Lead Pitch 0.5mm)

Max Height

5mm

Rotation

±180°

Placement Accuracy

±0.02mm

X-Y Repeatability

±0.02mm

Board Dimension(mm)

Maximum

310 x 1500mm

140 x1500mm(With    1 waffle Tray)

Main Control

GUI

Electricity Supply

110V/220V

Power

180W

External Dimensions(mm)

Machine size

870(L)x680(W)x480(H)

Packing size

940(L)x740(W)x600(H)

Weight

Net Weight

60kgs

Gross weight

80kgs


Accessories



1

 Vibration feeder

1

2

 Nozzle

6

3

8G Flash Drive

1

4

Power Cord(3m)

1

5

Rail extension parts

1

6

Double Sided Adhesive Tape

2

7

Allen wrench Set

5

8

Tool Box

1

9

Reel holder stand

1


Placement video



Feedback
