NeoDen4 is a benchtop pick and place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN. Especially, with its auto rails, it is applicable for 0.8m/1.2m/1.5m LED strip.

Send InquiryChat Now

Product Details

Pick and place machines

Pick and place machines.jpg

Item Description

NeoDen4 is a flexible pick and place machine for all types of production.

With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.



Spotlights

1. Dual vision system (up-looking and down-looking cameras), identify and calibrate the different components at one time,  improves the accuracy of placement from 0201 to BGA;

2. Auto rails, help to achieve continuous placement and solve the problem of long LED bar, ex. 1.5m LED bar;

3. Automatic electric feeders, reduce the feeding deviation;

4. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving;

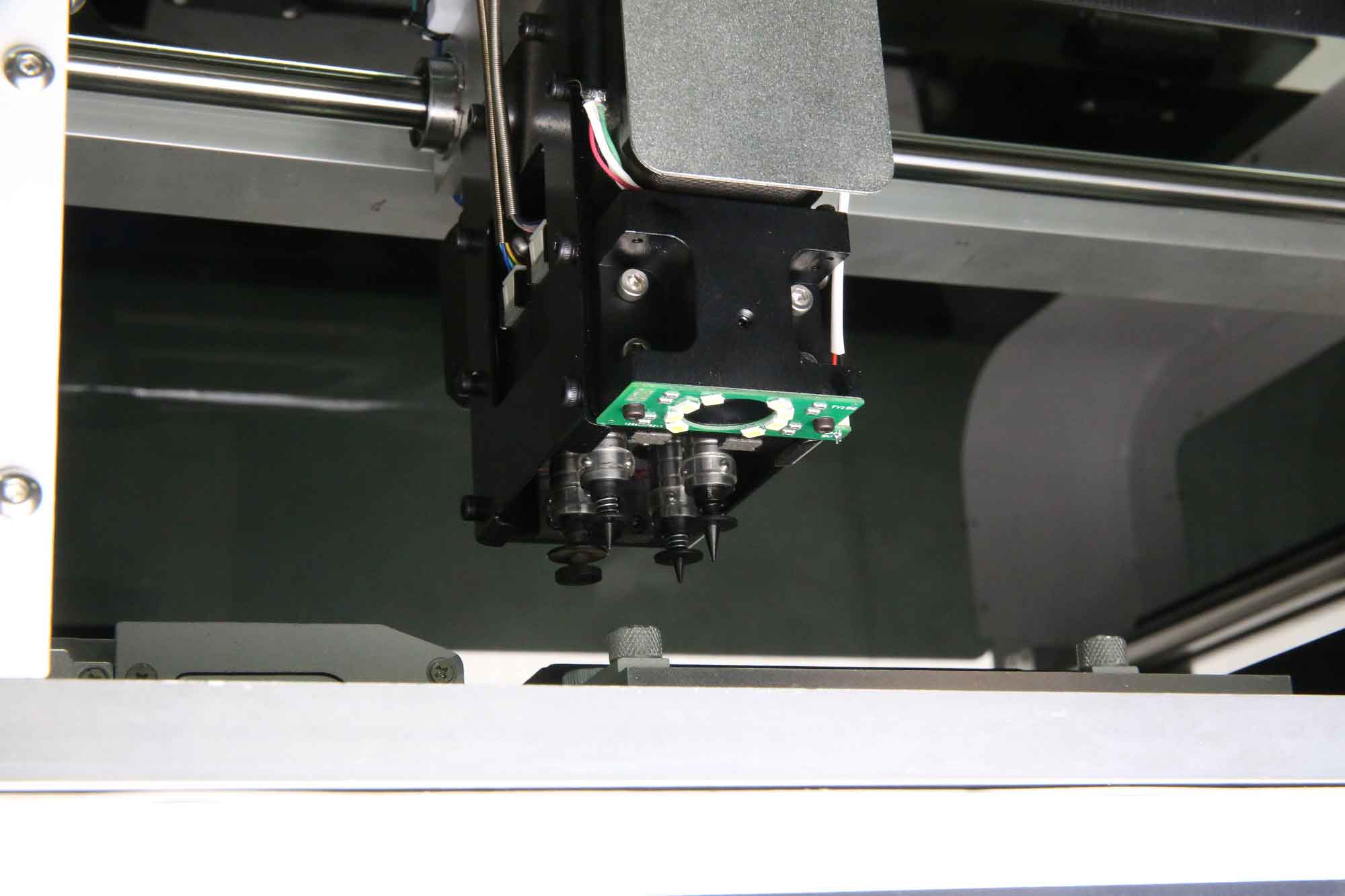

5. Four placement heads can pick up and calibrate components at one time.

6. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;


Placement video


Specification

NeoDen 4

with Internal Rails

Head with Vision enabled QTY:4

Mounting Speed:With vision: 5000/Without vision: 10000

Mounting Area

Without waffle Tray310*1500MM


With 1 waffle Tray140*1500MM

Suitable Components

Smallest Component  size:0201 / Largest Component size:TQFP240

Automatic Feeding

None

Yes

Feeder capacity

Tape Reel Feeders: 48(all 8 mm)


Vibrations Feeders: 5

IC tray capacity:5

Component Max Height: 5MM

Resolution

X/Y axis:0.01MM     Z axis:0.1MM

Rotation:+/-180°(360°)

Vacuum Pressure :0.9kp

Power Supply:110V/220V

Power:180W

Vision Camera

CCD High Accuracy

Vision Qty: Dual Vision

Recognition Capability: Max 30*30mm

Packing size: 94*74*60CM

External Dimensions Machine:87*68*48CM

Net Weight:60KGS

Gross weight:80Kg


Certificate

NeoDen has got TUV NORD CE and 30 local patents to protect the trade and to safeguard the well-being of the product

NeoDen manufactured, which is in full interest to the customer safety, by not getting into the copy or counterfeit products.



Warranty

The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply. NeoDen will provide online Q/A and troubleshooting support and technical advice service.


Payment and Delivery

1) Payment method: PayPal, West Union, Credit Card, etc

2) The default delivery method is via TNT (door to door), unless specific requirement from customer.

3) Delivery time: 3-7 working days.
