High Speed SMT Assembly Machine

This automatic SMT line is suitable for prototyping and small-medium with affordable price.

   automatic line



Step 1. Semi-auto Stencil Printer YS350

Model

YS350

Dimensions

850×720×1650mm

Platform Size

320×400mm

PCB Size

250×350mm

Template Size

550×680mm

Printing speed

0~8000mm/min

PCB Thickness

0.2~2.0mm

PCB Tuning range

Front/Side +10mm

Platform height

180mm

Repeatability

±0.02mm

Positioning mode

Outside/Reference hole

Power Supply

220V 50HZ/60HZ

Weight

300Kg


Step 2. Pick and Place Machine NeoDen4

NeoDen4 is a pick and place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN.


Technical data

Model

NeoDen4

Machine style

Single gantry with 4 heads

Alignment

Stage Vision

Placement Rate

Vision on

5,000CPH

Vision off

10,000CPH(Optimum)

Feeder Capacity

Tape feeder:48(all 8mm)

Vibration feeder:5

Tray feeder:45

Component Range

Smallest Size

0201

Largest Size

32x32mm (Pitch 0.5mm)

Max Height

5mm

Rotation

±180°

Placement Accuracy

±0.02mm

X-Y Repeatability

±0.02mm

Board Dimension(mm)

Maximum

310 x 1,500mm

Minimum

350 x 400mm(Option)

140 x1,500mm(Option)

Main Control

GUI

Electricity Supply

110V/220V

Power

180W

External Dimensions(mm)

Machine size

870(L)x680(W)x480(H)

Packing size

940(L)x740(W)x600(H)

Weight

Net Weight

60kgs

Gross weight

80kgs

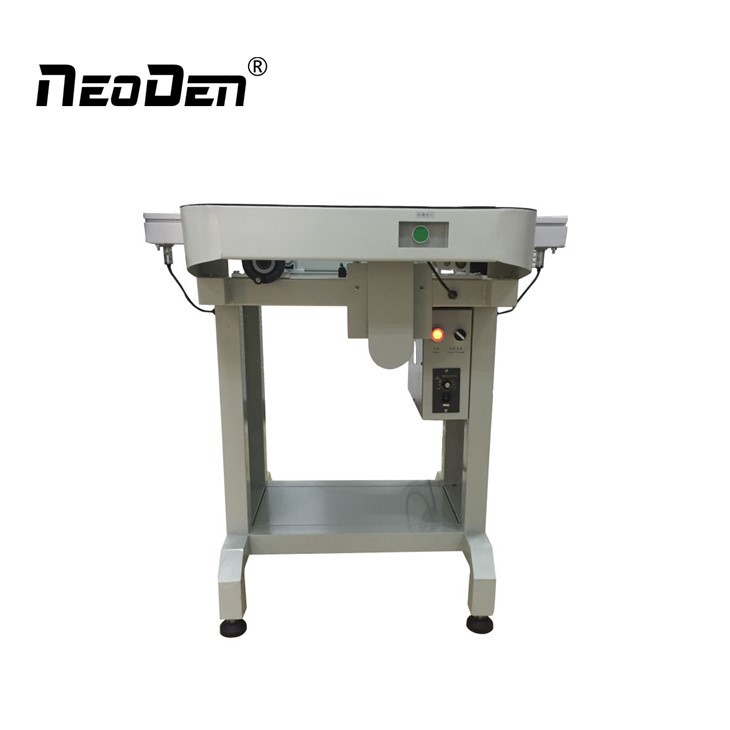

Step 3. SMT Conveyor J08

Model

J08

Conveyor Length

0.8m

Power Supply

220V

Packing Size

87x72x24cm

Gross Weight

49kg

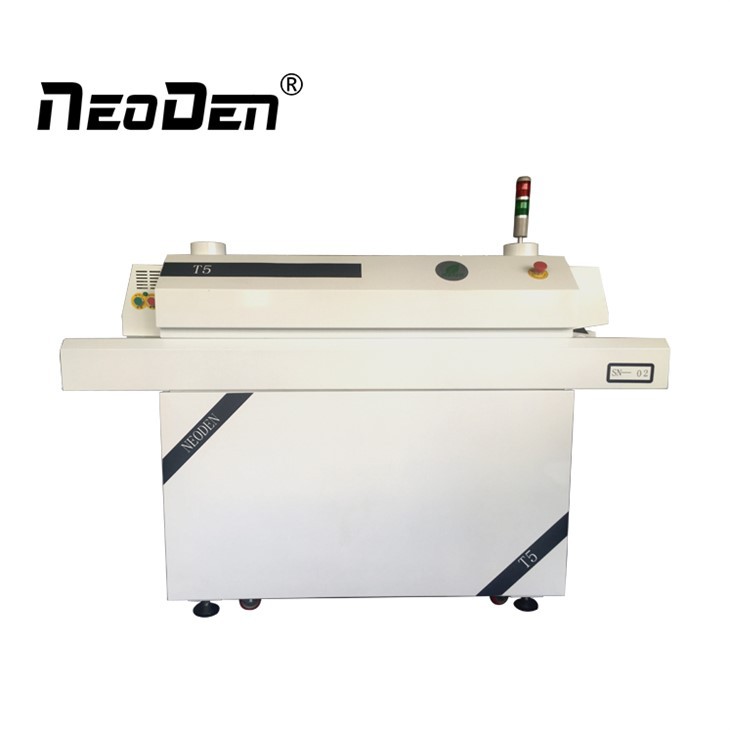

Step 4. Reflow Oven T-5L

Model

T-5L

Component Max Height

55mm

Component Standard Height

20mm

Conveyor Width

300mm

Heating Zones

5

Peak Power

7000W

Packing Size

190x70x128cm

Gross Weight

220kg


Placement Video


Why Choose NeoDen?

Quality

Since the launch of 1st generation TM220A to 4th generation NeoDen4, our machines have got lots of applause from customers world wide, here are some feedback and placement videos for your kind reference.

1.0603, SOT23, MSOP20: https://www.youtube.com/watch?v=Vdg1c-LzkRk

2.NeoDen4 building a SOM100: https://youtu.be/6-JrNvjJYMw

Besides,NeoDen has owned TUV NORD CE certificate since 2015, attached the documents for your kind reference.

Cost-efficient

NeoDen PnP machines is widely supported due to its high accuracy, stable performance,reliable quality with affordable price.

From prototyping to production.
NeoDen products are especially designed for home makers, start-up owners, lab researchers or electronics engineers those who want to do prototyping or small-medium batch production.
The component range: 0201, 0402, SOT,SOP,TQFP,BGA,QFN,etc.

Easy to operate
With built-in PC, you only need a monitor & keyboard to display and control the machine.
A. Generate coordinate file from PCB design software (AD, Eagle, KiCad,Upverter, etc).
B. If you don't have PCB layout, you can also easily program a working file with the assistance of vision system.

Professional and efficient support

NeoDen has a professional and experienced after-sales team, once any issue occurs, our engineer will try best to provide a solution via email/skype/call in a short time either workday or holidays.


Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry,

intelligent control industry, internet industry of things and military industry, etc..


Warranty

The guarantee period is 2 years for NeoDen4 and 1 year for other machines from the time of purchase and lifelong service support as well as a long-term factory price supply. NeoDen will provide online Q/A and troubleshooting support and technical advice service.


Payment and Delivery

1) Payment method: PayPal, West Union, Credit Card, etc

2) The default delivery method is via TNT (door to door), unless specific requirement from customer.

3) Delivery time: 3-7 working days.
